NX Series

Features
  • · Designed with a focus on machine learning, computer vision, advanced multimedia, and industrial automation applications that require a high level of reliability
  • · Modern System-on-Module (SoM) form factor
  • · Quad-core Cortex-A53 CPU operating at up to 1.8 GHz
  • · Cortex-M7 real-time control processor operating at up to 800 MHz
  • · Integrated Neural Processing Unit (NPU) and Image Signal Processor (ISP)
  • · Support for dual-band 2.4/5 GHz 2×2 Wi-Fi (IEEE 802.11ac) and Bluetooth 5.3
Description

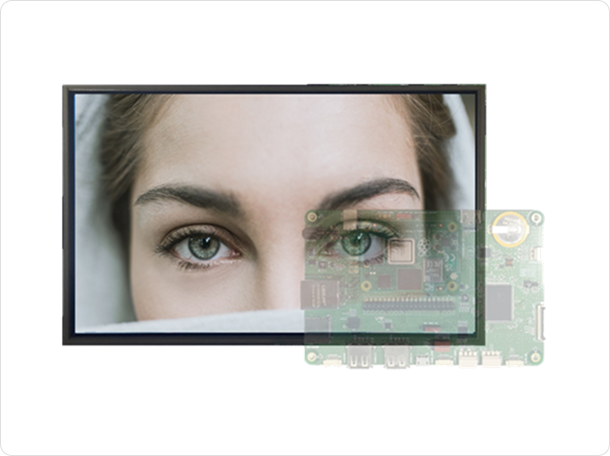

The NX Series is an edge AI–optimised platform designed to perform high-performance AI inference at the edge by adopting a CPU with an integrated Neural Processing Unit (NPU).

In addition to meeting the stability and accuracy requirements of existing medical devices and diagnostic equipment, the NX Series incorporates a range of features that address the demands of industrial electronics, including real-time processing, system scalability, and high reliability.

Key components such as dual-band Wi-Fi, Bluetooth 5.3, and the integrated NPU are essential in fulfilling these requirements, enabling the NX Series to be widely deployed across diverse application environments, including medical systems, industrial automation, and smart devices.

NXL070HR1 NXM101HR3 NXL116HR4 NXL121HR2 NXE133HR5 NXE156HR5 NXE215HR5 CUSTOM
Screen Size 7.0” 10.1” 11.6” 12.1” 13.3” 15.6” 21.5”
CPU NXP i.MX 8M Plus/1.8GHz
Core Cortex-A53 Quad-Core @ 1.8GHz
Cortex-M7 processor with speeds up to 800 MHz
AI NPU (Up to 2.3 TOPS) / Dual ISP
Resolution 1024 x 600 1280 x 800 1366 x 768 1024 x 768 1920 x 1080 1920 x 1080 1920 x 1080
Brightness 300~500cd/m², optional
Touch Type Resistive or capacitive
Viewing Angle θL : 85°, θR : 85° / θT : 85°, θB : 85°, dependent on LCD
Contrast Ratio 800:1, optional
eMMC Memory 32GB
RAM Memory 8GB LPDDR4
Camera Dual MIPI-CSI camera
Video Interface LVDS MIPI LVDS LVDS eDP eDP eDP
Vivante GC7000UL GPU, HDMI
2D Vivante GC520L / 3D Vivante GC7000UL
Audio Interface I2S
Communication USB 3.0 (HOST), USB 2.0 (HOST), USB 2.0 (OTG), RS-232C, GPIO, Ethernet, WiFi (2.4GHz, 5.0GHz), BLE 5.x, CAN
Micro SD 1
Speaker 2W / Mono with output level selection
RTC Rechargeable back up battery
GUI Qt 5.15
OS Debian 12
Options

· Option 1. Touch Tooling: Custom touch panel design is provided during the initial development phase to meet specific application requirements.
· Option 2. GUI Design: GUI design and initial system configuration are supported using Qt-based applications, enabling rapid and efficient user interface development.
· Option 3. Control Board Design Modification:The control board design can be modified to optimise interfaces and system architecture according to specific system requirements.
