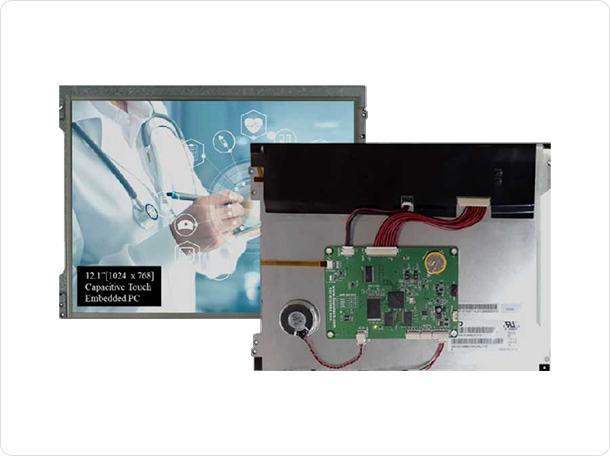

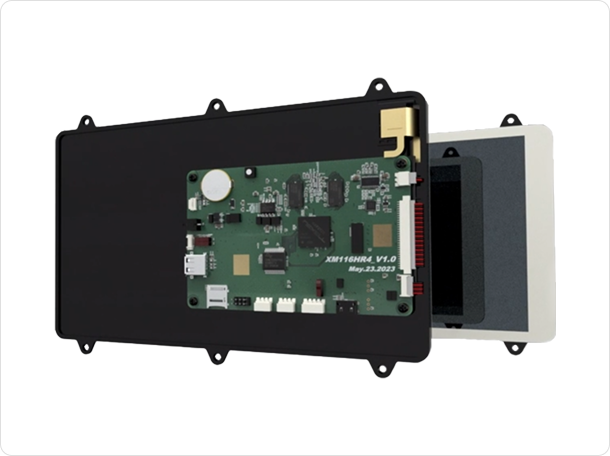

The XM series is an embedded touch PC product consisting of a TFT LCD panel, a single-board computer, a touch panel, and a customized bracket.
It provides USB, RS-232-C, RS-422, GPIO, I2C, Micro SD, and speaker functions, delivering stable performance based on years of technical expertise.
In particular, the single-board computer features a CoAsia Nexell S5P6818 Octa-core Cortex-A53 CPU, with 2GB DDR3 RAM and 8GB eMMC memory.
The operating system supports Ubuntu 18.04 LTS on Linux 4.4.8, and the UI program supports the Qt open-source version.
| XML070HR1 | XMM101HR3 | XML116HR4 | XML121HR2 | XME133HR5 | XME156HR5 | XME215HR5 | CUSTOM | |
|---|---|---|---|---|---|---|---|---|
| Screen Size | 7.0” | 10.1” | 11.6” | 12.1” | 13.3” | 15.6” | 21.5” | |
| CPU | S5P6818 / 1.4GHz | |||||||
| Core | Cortex-A53 Octa-Core @ 1.4GHz w/ L1 Cache: 32 Kbyte I-Cache, 32 Kbyte D-Cache per core | |||||||
| Resolution | 1024 x 600 | 1280 x 800 | 1366 x 768 | 1024 x 768 | 1920 x 1080 | 1920 x 1080 | 1920 x 1080 | |
| Brightness | 300~500cd/m², optional | |||||||
| Touch Type | Resistive or capacitive | |||||||
| Viewing Angle | θL : 85° , θR : 85° / θT : 85° , θB : 85°, dependent on LCD | |||||||
| Contrast Ratio | 800:1, optional | |||||||
| eMMC Memory | 8GB | |||||||
| RAM Memory | DDR3 2GB | |||||||
| Video Interface | LVDS | MIPI | LVDS | LVDS | eDP | eDP | eDP | |
| High Performance 3D Graphic Accelerator | ||||||||
| Full-HD Multi Format Video Codec | ||||||||
| Audio Interface | I2S | |||||||
| Communication | USB 2.0 Host, USB OTG, 2 x RS-232C, RS-422, UART, LOG UART, HDMI, I2C, 4 x GPIO | |||||||
| Micro SD | 1 | |||||||
| Speaker | 3W / Mono with output level selection | |||||||
| RTC | Rechargeable back up battery | |||||||
| GUI | Qt 5.6 (opensource) or Qt 5.10 (License) | |||||||
| OS | Ubuntu 18.04, Linux 4.4.8, 64-bit | |||||||
· Option 1. Touch Tooling: Touch panel design for initial projects
· Option 2. GUI Design: GUI design and initial setup support using Qt programs
· Option 3. Control Board Design Modification: Interface and structural changes optimized for the system
